Marine Shipboard VFD Cable
Galaxy provides shipboard VFD (Variable Frequency Drive) cables to marine markets including naval operations and commercial shipping enterprises.
Shipboard VFD Cable, Marine Variable Frequency Drive Cable for Naval/Maritime Use
Galaxy provides shipboard VFD (Variable Frequency Drive) cables to a marine markets including naval operations and commercial shipping enterprises.
What is a Shipboard VFD Cable?
Shipboard VFD cables are designed for use in commercial marine vessels, workboats, pump stations and motor drives. Galaxy Shipboard VFD cables are rated 600V/1KV. These cables are specifically designed for variable frequency AC motor drives per UL Listed Marine Shipboard Cable Standard 1309 Type X. This cable is also UL listed Type TC-ER per UL 1277, classified as per IEEE 1580-2010, UL Standard 2277 for flexible motor supply. Galaxy marine VFD cables have resistance to oil, abrasion, moisture and sunlight.
Shipboard VFD Cable Specifications

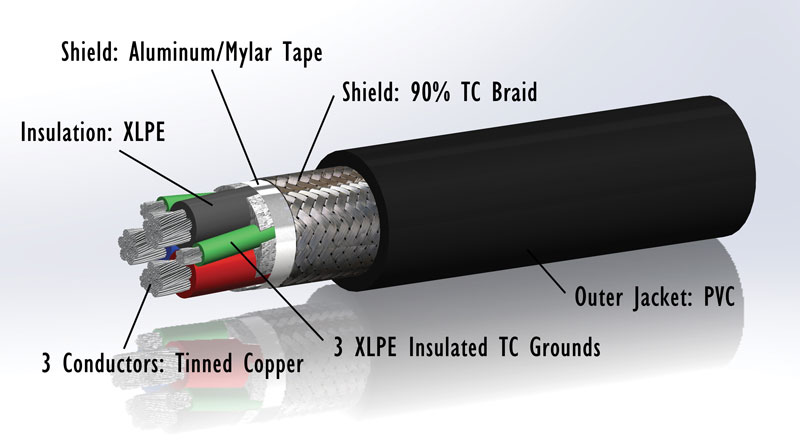

Galaxy’s shipboard VFD cables are manufactured using tinned copper Class K conductors with XLPE insulation, XLPE insulated tinned copper grounds, an aluminum/mylar and 90% tinned copper braid dual shield and an overall PVC jacket. They are approved for use in SUN RES. OIL RES I & II, FT-4 and 90°C applications.
Standards for Galaxy Shipboard VFD Cable
Galaxy provides many types of shipboard VFD cables for marine applications. Galaxy’s Sales Engineers have successfully assisted in the design of custom shipboard VFD Cables for many customers, and understand the challenges that come along with the cable selection process. No matter the environment or desired functionality of the cable, a cable can be manufactured that enables the equipment to function as intended. The standards they conform to can include, but are not limited to the following:
- Suitable for Class I Division II Hazardous Locations
- UL Listed as Type TC-ER per UL 1277 Tray Cables
- UL Listed Marine Shipboard Cable per UL 1309
- Classified in accordance with IEEE 1580-2010
- American Bureau of Shipping (ABS) Approved
- Suitable for United States Coast Guard (USCG) Certified vessels
- UL Listed as Flexible Motor Supply Cables per UL Standard 2277
- UL Approved for Sunlight Resistant, Direct Burial, and Oil Resistant I applications
- Cable meets IEEE 1202 (FT-4)
- All Materials Used in the Manufacture of this Cable are RoHS II and REACH Compliant
- Made in the USA
Marine Shipboard VFD Cable Technical Specifications
Galaxy offers variable frequency drive cables for marine and shipboard use in the following ranges of technical specifications:

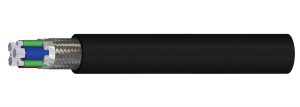

Shipboard Type X 600V/1KV XLPE/PVC
| AWG | # of Tinned Copper Strands | Insulation Thickness (inches) | # of Tinned Copper Grounds | Weight (lbs/Mft) | Diameter (inches) | Amp Rating |
|---|---|---|---|---|---|---|
| 18 | 16 x 30 AWG | 0.030 | 3 x 18 AWG | 127 | 0.438 | 11 |
| 16 | 26 x 30 AWG | 0.030 | 3 x 16 AWG | 159 | 0.480 | 15 |
| 14 | 41 x 30 AWG | 0.030 | 3 x 18 AWG | 173 | 0.490 | 24 |
| 12 | 65 x 30 AWG | 0.030 | 3 x 16 AWG | 243 | 0.570 | 29 |
| 10 | 105 x 30 AWG | 0.030 | 3 x 14 AWG | 318 | 0.620 | 38 |
| 8 | 168 x 30 AWG | 0.045 | 3 x 14 AWG | 447 | 0.730 | 48 |
| 6 | 266 x 30 AWG | 0.045 | 3 x 12 AWG | 604 | 0.820 | 65 |
| 4 | 413 x 30 AWG | 0.045 | 3 x 10 AWG | 862 | 0.945 | 83 |
| 2 | 665 x 30 AWG | 0.045 | 3 x 10 AWG | 1,276 | 1.130 | 111 |
| 1 | 840 x 30 AWG | 0.055 | 3 x 10 AWG | 1,469 | 1.220 | 131 |
| 1/0 | 1064 x 30 AWG | 0.055 | 3 x 10 AWG | 1,758 | 1.370 | 150 |
| 2/0 | 1330 x 30 AWG | 0.055 | 3 x 8 AWG | 2,039 | 1.426 | 173 |
| 3/0 | 1672 x 30 AWG | 0.055 | 3 x 8 AWG | 2,570 | 1.600 | 201 |
| 4/0 | 2109 x 30 AWG | 0.055 | 3 x 8 AWG | 3,119 | 1.750 | 232 |
Contact Galaxy for Marine Shipboard VFD Cable
Contact us for further assistance with shipboard variable frequency drive cable products
